Your Price: $14.00 / EA
O-Z/Gedney 1/2 IN FORM7 LR COND BODY
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1/2 IN FORM7 LR COND BODY
Specification Sheet
Warranty
Detailed Description

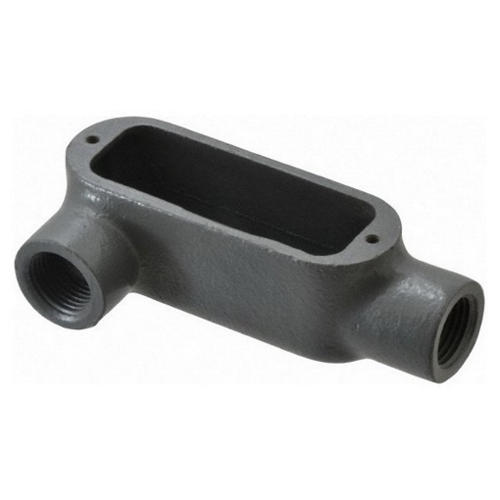

OZ-Gedney Type LR Conduit Body, 1/2 IN Hub, Form: 7, Length: 4-9/16 IN, 2-1/4 IN Width, 1-3/8 IN Height, Iron, Finish: Zinc Electroplated With Aluminum Enamel, Gray, Connection: Tapered FNPT, 4 CU-IN Volume, Third Party Certification: UL File Number
| Connection: | Tapered FNPT |
| Color: | Gray |
| Hub Size: | 1/2 |
| Form: | 7 |
| Material: | Iron |
| Width: | 2-1/4 IN |
| Application: | For Rigid Conduit And IMC |
| Finish: | Zinc Electroplated With Aluminum Enamel |
| Height: | 1-3/8 IN |
| Length: | 4-9/16 IN |
| Type: | Type LR Conduit Body |
| Standard: | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No. 18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC section 501-4(B), NEMA: FB-1, FB-2.10 |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Complete int |
