Your Price: $12.70 / EA
O-Z/Gedney 1/2 IN 45 DEG CONN AC/FMC
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1/2 IN 45 DEG CONN AC/FMC
Specification Sheet
Warranty
Detailed Description

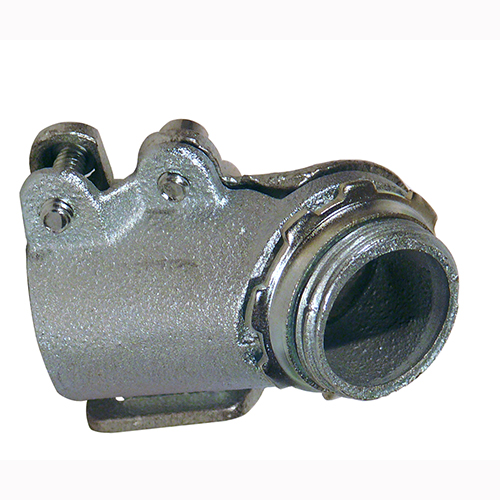

OZ-Gedney Type AC 45 DEG Center Stopped Squeeze Connector, Size: 1/2 IN, Connection: Male NPS Hub X Screw Clamp, Conductor Range: 25/32 - 15/16 IN, Malleable Iron, Finish: Zinc Electroplated, Dimensions: 1-15/16 IN Length X 1-11/16 IN Width, Third P
| Size: | 1/2 IN |
| Finish: | Zinc Electroplated |
| Material: | Malleable Iron |
| Connection: | Male NPS Hub X Screw Clamp |
| Special Features: | To ground and secure armored cable and flexible metal conduit to boxes and enclosures; Furnished with locknuts |
| Conductor Range: | 25/32 - 15/16 IN |
| Application: | For Armored Cable, Flexible Metal Conduit, Non-Metallic And Service Entrance Cable |
| Standard: | Third Party Certification: UL File Number E-11852, Hazardous Location: NEC 501-4(b) Class I Division II, NEC 350-5 (Grounding Means) CSA 9795 (Armored Cable), Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA |
| Type: | Type AC 45 DEG Center Stopped Squeeze Connector |
