Your Price: $33.01 / EA

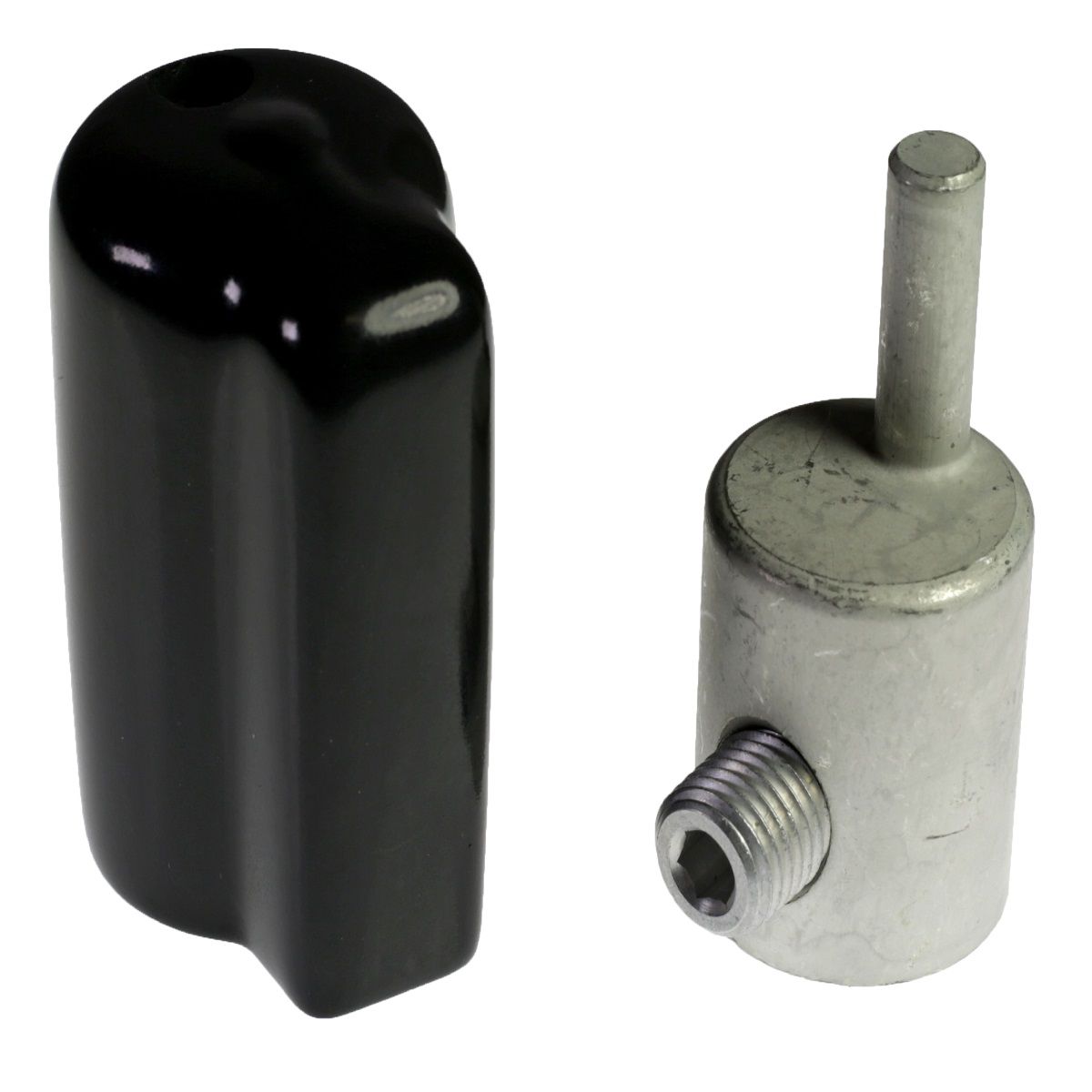

Burndy 1/0 AWG OFFSET AL MECH PIN ADAPTOR
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1/0 AWG OFFSET AL MECH PIN ADAPTOR
Specification Sheet
Detailed Description
Wire range: #6 - 1/0 AWG, Torque: 100 N lb, Voltage: 600 V.
| Minimum Pack Quantity: | 1 |
| Product Name: | KAPO1/0, Wire range: #6 - 1/0 AWG, Torque: 100 N lb, Voltage: 600 V. |
| Description - Short: | 1/0 AWG OFFSET AL MECH PIN ADAPTOR |
| Hex Key: | 1/4 in |
| FV_Conductor - AL Str Size Range: | 6 AWG - 1/0 AWG |
| Material: | Aluminum |
| Amperage Rating: | 170 A |
| Application: | Terminate "upsized" conductor and/or fine strand conductor into mechanical connectors found in molded case circuit breakers, panel board equipment, and other switchgear. |
| Conductor Size: | 6-1/0 AWG |
| Size: | 2.01 in x 1.12 in x 1.43 in |
| Special Features: | AL9CU- UL Listed for use with fine strand conductor |
| Type: | #6 - 1/0 Mechanical Pin Adaptor; Off-Centered Pin |
