Your Price: $33.01 / EA

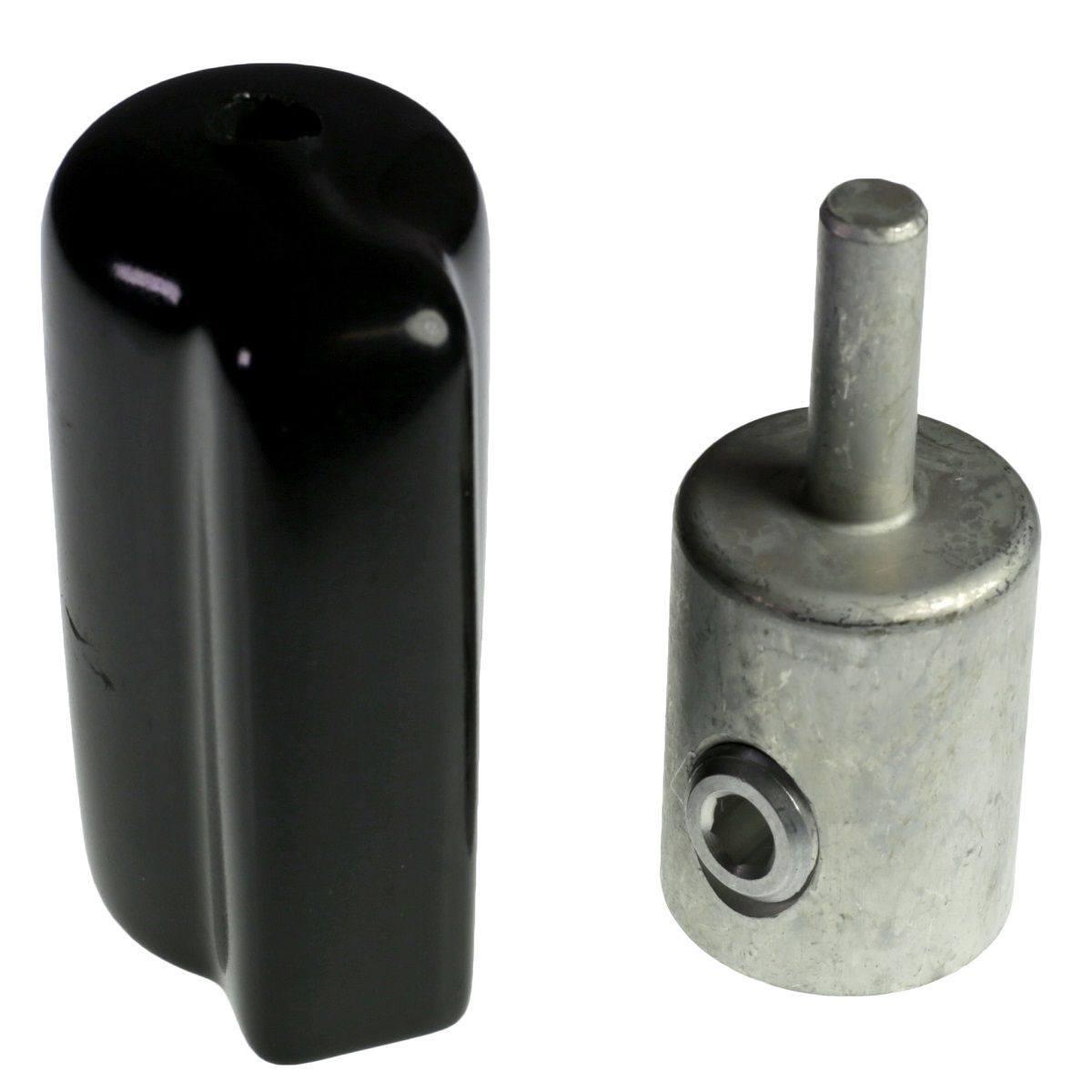

Burndy 1/0 AWG AL MECH PIN ADAPTOR
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1/0 AWG AL MECH PIN ADAPTOR
Specification Sheet
Detailed Description
Wire range:6 Awg-1/0 Awg, Torque: 100 N lb, Voltage: 600 V.
| FEATURES - Bullets: | AL9CU Dual Rated for both copper an aluminum conductor;Listed to UL Wire Connector Standard UL486A-486B;Rated for use with Fine Strand Conductor;600 Volt Rated;Range Taking conductor port;Plastisol insulated covers provided with each connector |
| Product Type: | PIN TERMINAL |
| Description - Long: | Wire range:6 Awg-1/0 Awg, Torque: 100 N lb, Voltage: 600 V. |
| Description - Slang: | MECHANICAL CONNS |
| FV_Conductor - Copper DLO Size Range: | 6 AWG - 1/0 AWG |
| Material: | Aluminum |
| Amperage Rating: | 170 A |
| Application: | Terminate "upsized" conductor and/or fine strand conductor into mechanical connectors found in molded case circuit breakers, panel board equipment, and other switchgear. |
| Conductor Size: | 6-1/0 AWG |
| Size: | 2.01 in x 1.12 in x 1.43 in |
| Special Features: | AL9CU- UL Listed for use with fine strand conductor |
| Type: | #6 - 1/0 Mechanical Pin Adaptor; Centered Pin |
