Your Price: $139.20 / EA
Burndy 1/0-500 CU XFMR TAP 2 CO
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1/0-500 CU XFMR TAP 2 CO
Specification Sheet
Detailed Description

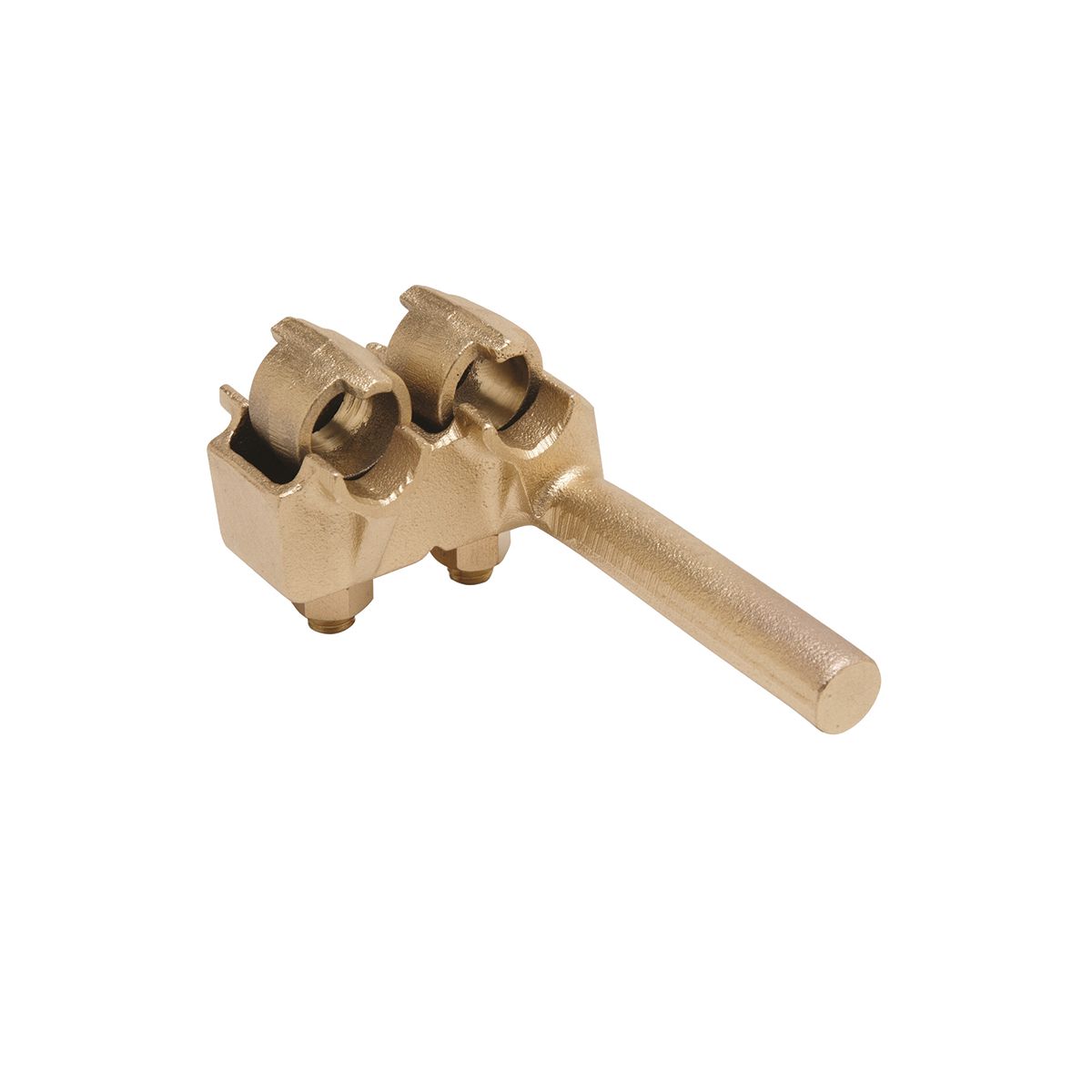

Multi-tap, range-taking cast copper alloy connector designed to take 2 conductors from a single secondary transformer outlet.
| Product Type: | Mechanical |
| Certification - CSA Approved: | No |
| Rating - KVA: | 230 kV |
| Dimension - Height inch: | 3.88 in |
| Application: | Substation |
| Conductor Size: | 1/0 -500 kcmil |
| Material: | Copper Alloy |
| Special Features: | Features: Multi-Tap, Range-Taking Cast Copper Alloy Connector Designed To Take 2, 3 Or 4 Conductors From A Single Secondary Transformer Outlet, Torque: 480 IN-LB, Number Of Conductors: 2, Rod Diameter: 0.78 IN, Bolt Size: 1/2-13 |
| Type: | Adapters |
