Your Price: $14.00 / EA

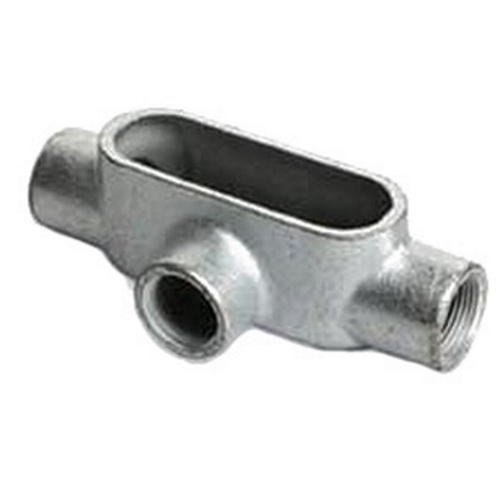

O-Z/Gedney 1 IN FORM7 T COND BODY
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1 IN FORM7 T COND BODY
Specification Sheet
Warranty
Detailed Description
OZ-Gedney Type T Conduit Body, 1 IN Hub, Form: 7, Length: 7-1/4 IN, 3 IN Width, 2-1/4 IN Height, Iron, Finish: Zinc Electroplated With Aluminum Enamel, Gray, Connection: Tapered FNPT, 3 (4 AWG) Conductors, 15 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC
| Connection: | Tapered FNPT |
| Color: | Gray |
| Hub Size: | 1 |
| Height: | 2-1/4 IN |
| Form: | 7 |
| Material: | Iron |
| Width: | 3 in |
| Length: | 7-1/4 IN |
| Application: | For Rigid Conduit And IMC |
| Finish: | Zinc Electroplated With Aluminum Enamel |
| Standard: | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Complete int |
| Type: | Type T Conduit Body |
