Your Price: $28.08 / EA
O-Z/Gedney 1 IN ALUM LB COND BODY
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1 IN ALUM LB COND BODY
Specification Sheet
Warranty
Detailed Description

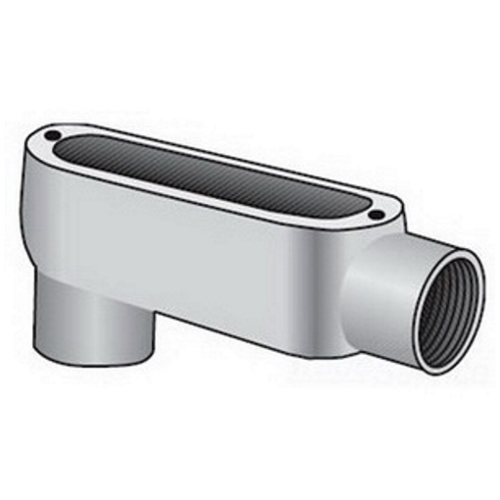

OZ-Gedney Type LB Conduit Body, 1 IN Hub, Length: 6-1/8 IN, 1-3/4 IN Width, Die-Cast Copper-Free Aluminum, Finish: Aluminum Enamel, Connection: Tapered FNPT, 3 (4 AWG) Conductors, 12.2 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC
| Connection: | Tapered FNPT |
| Hub Size: | 1 |
| Width: | 1-3/4 IN |
| Application: | For Rigid Conduit And IMC |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Raintight wh |
| Finish: | Aluminum Enamel |
| Length: | 6-1/8 IN |
| Material: | Die-Cast Copper-Free Aluminum |
| Standard: | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Type: | Type LB Conduit Body |
