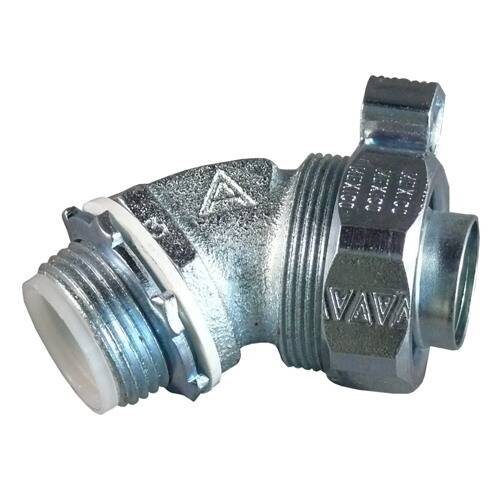

Appleton Electric STB-4575L STB Series 45 DEG Liquidtight Connector, Size: 3/4 IN, Connection: Threaded X Compression, Conductor Range: 14 - 4 AWG, Material: Malleable Iron, Fini...
$17.55
Appleton Electric #: STB-4575L
SKU: APPLSTB-4575L
UPC: 781381403665
SKU: APPLSTB-4575L
UPC: 781381403665
| Size: | 3/4 in |
| Finish: | Chromate, Epoxy Powder Coat/Zinc Electroplated |
| Material: | Malleable Iron |
| Application: | For Liquidtight Flexible Metal Conduit |
| Connection: | Threaded X Compression |
| Standard: | Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| Conductor Range: | 14 - 4 |
| Special Features: | Includes insulated throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal- |
| Type: | STB Series 45 DEG Liquidtight Connector |
