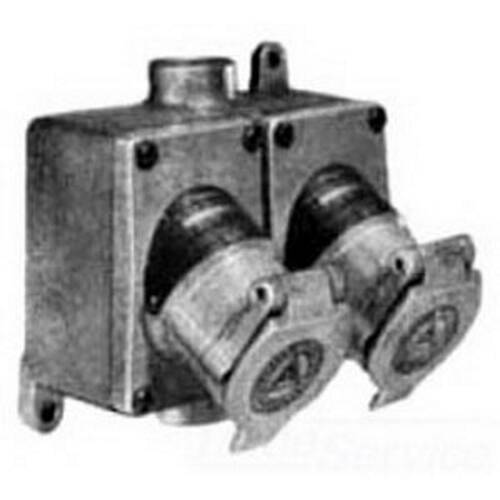

Appleton Electric EFSC275-2023M U-Line 2-Gang Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Mallea...
$1,425.12
Appleton Electric #: EFSC275-2023M
SKU: APPLEFSC275-2023M
UPC: 781381397285
SKU: APPLEFSC275-2023M
UPC: 781381397285
| Amperage Rating: | 20 AMP |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Voltage Rating: | 125 |
| Application: | For CPH And ECP Mating Plugs |
| Standard: | Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL Listed: E10784, E81751; UL Standard: 1203, 1010, 894; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159; CSA Certified: 038644 |
| Special Features: | Explosionproof, dust-ignitionproof; Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Suitab |
| Material: | Malleable Iron Receptacle And Mounting Box |
| NEMA Rating: | NEMA 3, 3R |
| Type: | 2-Gang Receptacle With Mounting Box |
| Mounting: | Surface Mount With 3/4 IN Feed-Thru Hub |
