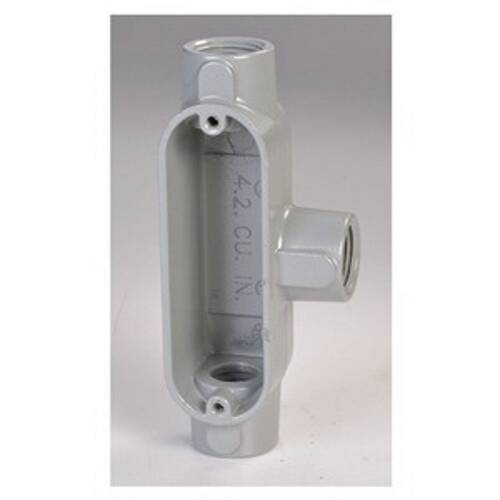

Appleton Electric T75T-A Form 85 UNILETS Type T Conduit Outlet Body, Hub Size: 3/4 IN, Form: 85, Length: 5.63 IN, Height: 1.63 IN, Material: Pressure Cast Aluminum, Finish: Ep...
$29.69
Appleton Electric #: T75T-A
SKU: APPLT75T-A
UPC: 781381687201
SKU: APPLT75T-A
UPC: 781381687201
| Connection: | Set-Screw |
| Hub Size: | 3/4 |
| Finish: | Epoxy Powder Coat |
| Standard: | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Form: | 85 |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs |
| Material: | Pressure Cast Aluminum |
| Application: | For Use With EMT |
| Height: | 1.63 in |
| Length: | 5.63 in |
| Type: | Type T Conduit Outlet Body |
