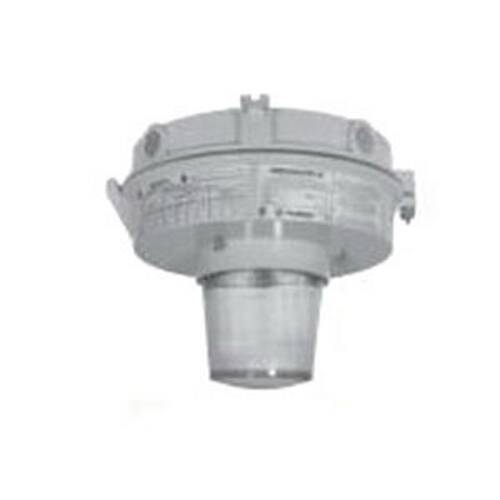

Appleton Electric MLCL702G1GMT Appleton Mercmaster III ML Series Low Profile HID Luminaire With Cast Guard, Fixture Type: Ceiling Mount, Lamp Type: 70 WTT 6400 LM Medium High Pressu...
$1,205.74
Appleton Electric #: MLCL702G1GMT
SKU: APPLMLCL702G1GMT
UPC: 781381655682
SKU: APPLMLCL702G1GMT
UPC: 781381655682
| Ambient Temperature Range: | 65 DEG C |
| Ballast Quantity: | 1 |
| Fixture Wattage: | 94 WTT |
| Temperature Range: | 90 DEG C Supply Wire |
| Lamp Wattage: | 70 WTT |
| Lens Material: | Heat-Resistant Prismatic Glass Globe |
| Fixture Type: | Ceiling Mount |
| Housing Finish: | Baked Gray Epoxy-Clad Powder Coat |
| Housing Material: | Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Number Of Lamps: | 1 |
| Voltage Rating: | 120/208/240/277 V |
| Amperage Rating: | 0.35 AMP Starting, 0.36 AMP Operating At 277 V |
| Ballast Type: | High Reactance High Power Factor Autotransformer (HX-HPF) |
| Length: | 13.62 IN |
| Width: | 13.62 IN |
| Special Features: | The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations; Compact light weight low profile design is suited for low mounting heights in conjun |
| Standard: | Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nR IIC (Z2); Class I, Zone 2, Ex nR IIC (Z); Class I, Zone 2, AEx nR IIC (ZB); Class II, Division 1 And 2, Groups E, F, G; Class III; UL 1598A, 60079-15, 844; CSA LR25428 |
| Lamp Type: | 70 WTT 6400 LM Medium High Pressure Sodium |
| Application: | Enclosed And Gasketed Fixtures Suitable For Use In Marine And Wet Locations, And In A Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Or Combustible Dusts Are Present, Areas Of Low Clearance, Low Ceiling Heig |
| Material: | Stainless Steel Hardware And Latch Assembly, Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum Mounting Hood, Body And Guard |
| Type: | ML Series Low Profile HID Luminaire With Cast Guard |
