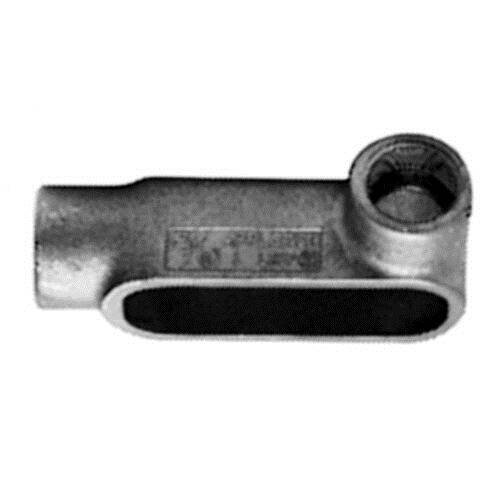

Appleton Electric LR47 FM7 UNILETS Type LR Conduit Outlet Body, Hub Size: 1-1/4 IN, Form: 7, Length: 6-1/2 IN, Width: 3.19 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Z...
$43.82
Appleton Electric #: LR47
SKU: APPLLR47
UPC: 781381514446
SKU: APPLLR47
UPC: 781381514446
| Connection: | Tapered Female Threaded |
| Color: | Gray |
| Hub Size: | 1-1/4 |
| Form: | 7 |
| Standard: | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Finish: | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs |
| Application: | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Type: | Type LR Conduit Outlet Body |
| Material: | Grayloy-Iron |
| Width: | 3.19 in |
| Length: | 6-1/2 IN |
