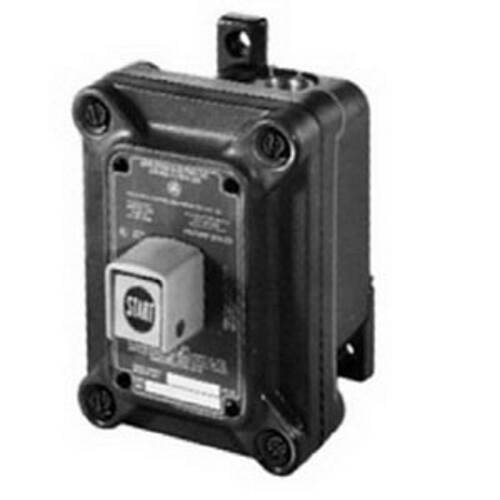

Appleton Electric N1D75-U1 Intraground N1 Series 1-Gang Push Button Switch, Action: Momentary, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Enclosure: NE...
$0.00
Appleton Electric #: N1D75-U1
SKU: APPLN1D75-U1
UPC: 781381476126
SKU: APPLN1D75-U1
UPC: 781381476126
| Contact Rating: | 10 AMP At 600 VAC |
| Contact Configuration: | 1 NO/1 NC |
| Action: | Momentary |
| Mounting: | Surface Mount With 1/2 or 3/4 IN Dead-End Hub |
| Application: | For Remote Control Of Motors |
| Enclosure: | NEMA 3R, 4X, 7CD, 12 |
| Special Features: | Nonmetallic construction with metal imbedded grounding grid; No need to install special wires and parts for grounding; Special grounding wire furnished with each box provides safe grounding when cover is removed; Unique labyrinth-path construction assures |
| Standard: | UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D |
| Type: | N1 Series 1-Gang Push Button Switch |
