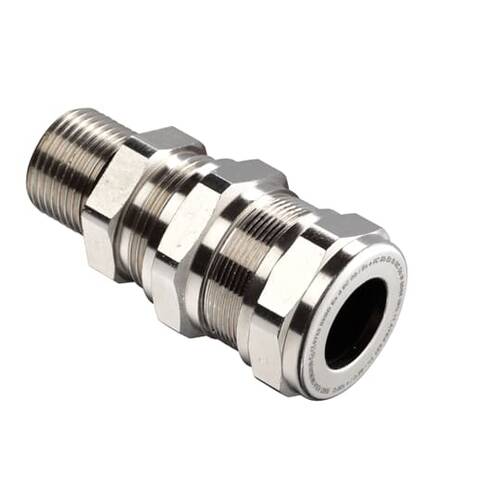

Thomas & Betts EXS09AMC1 2npt S/s Dc Gland
$2,864.60
Thomas & Betts #: EXS09AMC1
SKU: ABBIEXS09AMC1
UPC: 786210195476
SKU: ABBIEXS09AMC1
UPC: 786210195476
| Special Features: | Designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and pieces |
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | 2 Inch NPT |
| Color: | Metallic |
| Material: | Stainless Steel |
| Application: | For Use with SWA (Steel Wired Armoured), AWA (Aluminum Wired Armour), and SWB (Steel Wired Braid) Conduit to Provide Secure Cable Connections Through Knockouts and Threaded Entries |
| Environmental Conditions: | Flameproof Ex d and Increased Safety Ex e, Suitable for Zones 1, 2, 21, 22 |
| Standard: | UL Listed, Approved to EN60079-0, 60079-1, 60079-7, 60079-31 |
| Type: | Double Compression Gland |
| Insulation: | IP66 Rating |
| Temperature Rating: | -40 to 100 C |
| Conductor Range: | Inner 40 to 52mm, Outer 47 to 60mm |
