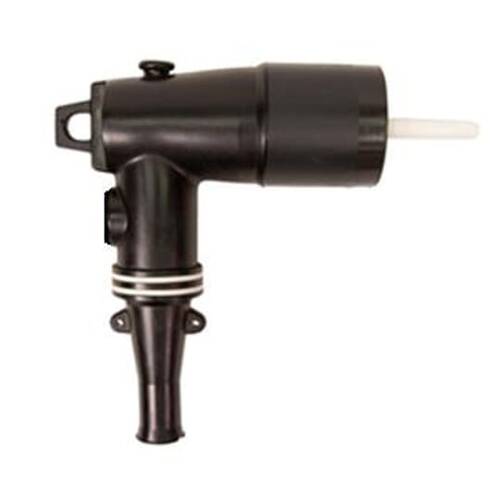

Thomas & Betts 261LR-B5220 25kv 200a Lb Elbow Noseal B5220
$140.46
Thomas & Betts #: 261LR-B5220
SKU: ABBI261LR-B5220
UPC: 075114350891
SKU: ABBI261LR-B5220
UPC: 075114350891
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | 9.03 inches Long x 7.89 inch Wide |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Amperage Rating: | 200 A |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Environmental Conditions: | Fully Submersible |
| Conductor Range: | #2 STR/COMPR AWG , #1 SOL/COMPT AWG |
| Voltage Rating: | 25 to 28 kV |
| Type: | Loadbreak Elbow Connector |
| Application: | Designed for connecting to and operating 25/28kV class, 200 Amp Distribution Apparatus |
| Special Features: | 25/28kV, 200 Amp Loadbreak Elbow. Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connecti |
