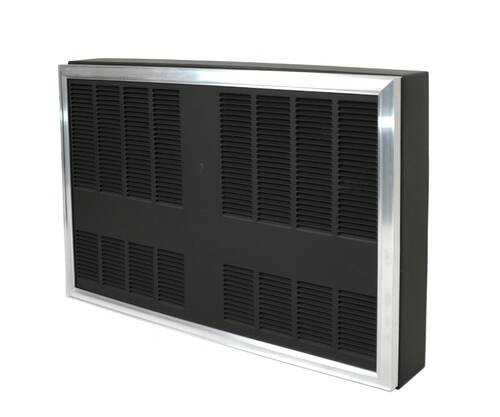

J3349 9600W, 208V 3P HD Fan Frcd Wall Htr
$3,399.68
#: J3349
SKU: J3349
UPC: 686334476065
SKU: J3349
UPC: 686334476065
| Air Flow: | 350 CFM |
| Color: | Brown |
| Fan Speed: | 600 RPM |
| Finish: | Powder Coated |
| Minimum Operating Temperature: | 40 DEG F |
| Series: | 3340 |
| Warranty: | 1 YR Limited |
| Weight: | 68 LB |
| Amperage Rating: | 28.5 A |
| BTU Rating: | 32765 |
| Voltage Rating: | 208 V |
| Phase: | 3 |
| Maximum Operating Temperature: | 110 DEG F |
| Application: | Building |
| Dimensions: | 30-1/2 (W) x 4 (D) x 19-1/2 (H) IN |
| Housing Material: | 18 Gauge Steel |
| Mounting: | Surface Mount, Semi-Recessed Mount |
| Special Features: | Dual Vane Axial Fan Blades, Lockable Disconnect Switch, Automatic Purge, Manual Reset Thermal Limit, Low Voltage Control, Steel Block Fin Elements, Heavy Duty 18 ga. Powder Coated Grille, Extruded Aluminum Trim Frame, No Visible Screws, When Ordered witho |
| Standard: | cETLus |
| Type: | Heavy Duty |
| Model: | J3349 |
| Wattage: | 9600 W |
