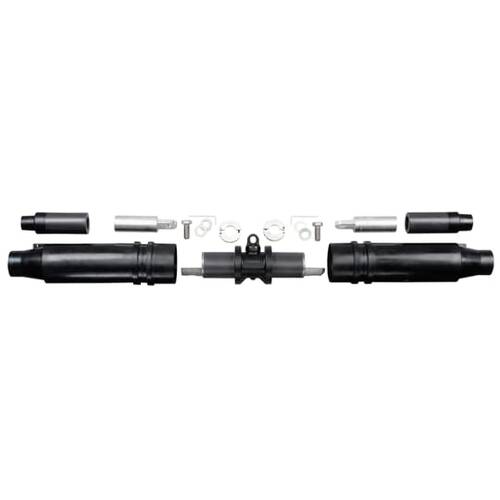

Thomas & Betts K656I-M0330 Wye Splice
$2,699.37
Thomas & Betts #: K656I-M0330
SKU: ABBIK656I-M0330
UPC: 783786616060
SKU: ABBIK656I-M0330
UPC: 783786616060
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Overall Length 37.27 inches |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Voltage Rating: | 15 to 25 kV |
| Amperage Rating: | 600 A |
| Type: | Deadbreak Separable Straight Joint |
| Application: | Compact Design is suitable for small vaults and manholes |
| Environmental Conditions: | All Weather Conditions |
| Conductor Range: | 500 kcmil , 600 kcmil |
| Special Features: | Fully Shielded, Fully Submersible, 100 percent Peroxide cured Molded EODM Rubber |
