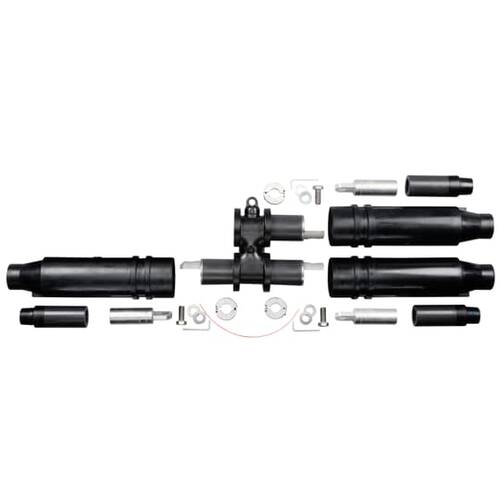

Thomas & Betts K656CY-H0280-SG3 Wye Joint 600 A Db 15-25kv
$4,490.12
Thomas & Betts #: K656CY-H0280-SG3
SKU: ABBIK656CY-H0280-SG3
UPC: 075114182683
SKU: ABBIK656CY-H0280-SG3
UPC: 075114182683
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Overall Length 37.27 inches x Width 8.12 inches not counting 1 inch Test Point |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Compression |
| Voltage Rating: | 15 to 25 kV |
| Amperage Rating: | 600 A |
| Application: | Compact Design is suitable for small vaults and manholes |
| Special Features: | Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber |
| Environmental Conditions: | All Weather Conditions |
| Conductor Range: | 250 kcmil , 300 kcmil |
| Type: | Deadbreak Separable Wye Joint |
