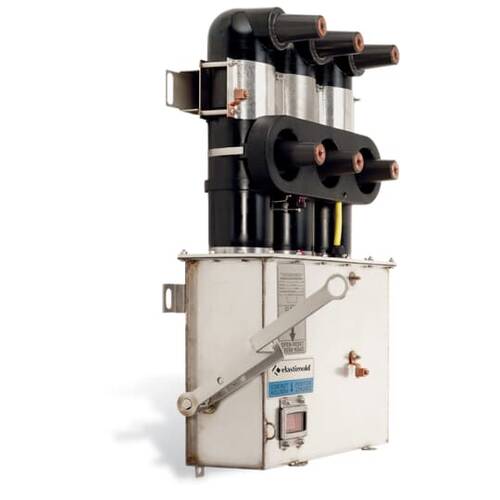

Thomas & Betts RMVI3-21-15-6AB280PS Vac Int,3ph,15kv,80control
$83,101.73
Thomas & Betts #: RMVI3-21-15-6AB280PS
SKU: ABBIRMVI3-21-15-6AB280PS
UPC: 783786069569
SKU: ABBIRMVI3-21-15-6AB280PS
UPC: 783786069569
| Type: | Molded Vacuum Interrupter - Triple Phase |
| Special Features: | EPDM Molded Rubber Insulation. Field Programmable with a Wide Range of Time-Circuit Characteristic (TCC) Curves and Trip Settings. Control Monitors the Circuit Condition |
| Application: | Make, Carry and Automatically Interrupt Currents |
| Standard: | ANSI C37.60, IEEE 386, ANSI C57.12.28 |
| Length: | 32-7/8 in , 835.025 mm |
| Material: | EPDM Rubber Insulation |
| Phase: | Triple Phase |
| Operating Temperature: | -40 to +65 C |
| Voltage Rating: | 15 kV |
| Amperage Rating: | 600 to 200 A |
