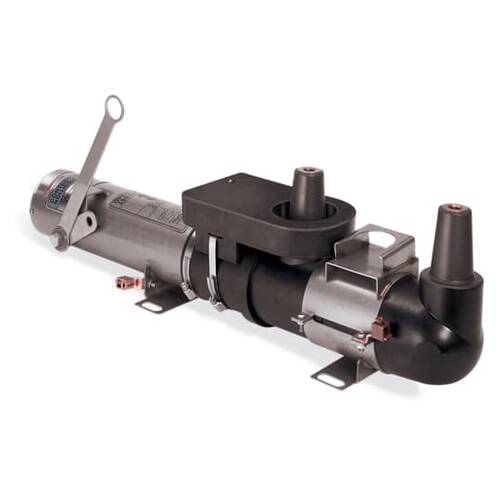

Thomas & Betts RMVI1-21-27-6AB2-SM Riser Vac Int 27kv 1ph
$26,425.70
Thomas & Betts #: RMVI1-21-27-6AB2-SM
SKU: ABBIRMVI1-21-27-6AB2-SM
UPC: 075114244510
SKU: ABBIRMVI1-21-27-6AB2-SM
UPC: 075114244510
| Special Features: | EPDM Molded Rubber Insulation. Field Programmable with a Wide Range of Time-Circuit Characteristic (TCC) Curves and Trip Settings. Control Monitors the Circuit Condition |
| Application: | Make, Carry and Automatically Interrupt Currents |
| Standard: | ANSI C37.60, IEEE 386, ANSI C57.12.28 |
| Voltage Rating: | 27 kV |
| Amperage Rating: | 600 A |
| Material: | EPDM Rubber Insulation |
| Operating Temperature: | -40 to +65 C |
| Type: | Molded Vacuum Interrupter - Single Phase |
| Length: | 30-5/8 in , 778 mm |
| Phase: | Single Phase |
