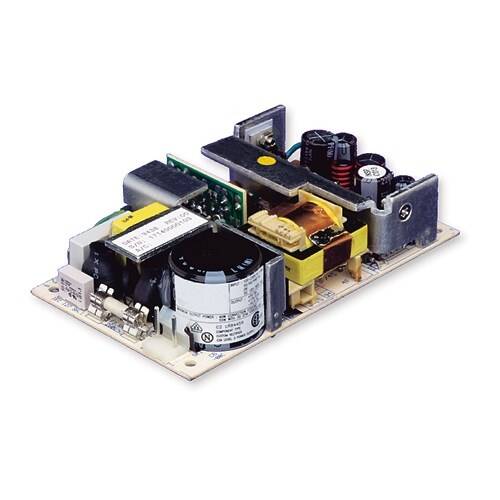

GLQ253-C SWITCHER 5V 15V 15V 5-25V 250W
$0.00
#: GLQ253-C
SKU: GLQ253-C
UPC: 783472171033
SKU: GLQ253-C
UPC: 783472171033
| Height: | 2 IN |
| Frequency Rating: | 47-63 Hz |
| Length: | 9 IN |
| Application: | For use in industrial and medical applications requiring standard footprint size and very high reliability |
| Special Features: | Industry standard footprints, Universal input, Full power to 50 DEG C, High demonstrated MTBF, Automatic overvoltage protection, Overload protection, Built-in EMI Filtering, Derated operation to 70 DEG C, +/- 2%, regulation on main output, 250 VA and high |
| Type: | GL Series Single & Multi Output Switchers |
| Voltage Rating: | 85-264 Vac/120-300 Vdc |
| Efficiency: | 75% Typical at full load |
| Standard: | Non-Medical: EN60950, UL UL60950 E132002, CSA 22.2-234 Level 3 LR53982C, CB Certificate and report; CE Mark (LVD), Medical: UL 2601; CSA 22.2 No. 601.1; EN 60601-8 |
| Width: | 5 IN |
