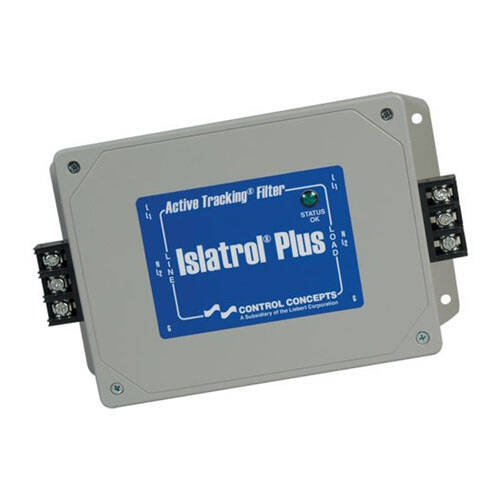

IC+205 ISLATRL+ 1PH 5A 240V
$0.00
#: IC+205
SKU: IC+205
UPC: 633914071714
SKU: IC+205
UPC: 633914071714
| Operating Temperature: | -40 DEG C to +45 DEG C at Full Load; Derate Linearly to 60% at +70 DEG C |
| Size: | 4 Length x 2.88 Width x 1.81 High IN |
| Voltage Rating: | 240 Volt/275 VRMS |
| Environmental Conditions: | Humidity: 0 to 95% |
| Response Time: | Normal Mode |
| Frequency Rating: | 47-63 HZ |
| Material: | High Impact Plastic Case, Vacuum Impregnated Magnetics, Epoxy Encapsulated |
| Short Circuit Rating: | Surge current capacity -- 45,000 Amps |
| Application: | Industrial or office equipment, computers placed in harsh environments. |
| Connection: | Barrier strip at input and output/with wire leads at input and output |
| Standard: | UL 1283, CSA Recognized |
| Type: | Islatrol IC+ Series |
| Type of Indicators: | LED Power Indicators |
| Amperage Rating: | 2.5 AMPS |
| Mounting: | Flange Dimensions: 4.38 x 2.12 x 5.31 x 0.19 IN |
| Special Features: | Reduces normal mode transients to +/-2 volts; Surge current capacity - 45,000 Amps; Transient protection in all modes: line to neutral, line to ground, and neutral to ground; LED power indication |
| Class: | Category B Ringwave (6kv, 500 A, 100 kHz) |
