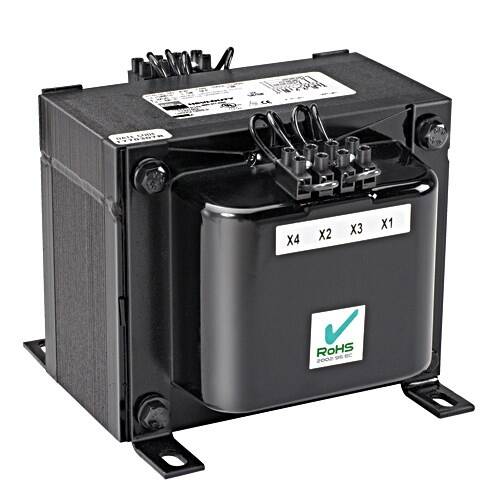

SolaHD 00TH 1KVA INTL CE-RATED XFMR TH
$529.43
SolaHD #: 00TH
SKU: SOLA00TH
UPC: 783472012794
SKU: SOLA00TH
UPC: 783472012794
| Number Of Taps: | 2 |
| Winding: | Copper |
| Number Of Phases: | 1 |
| Primary Voltage: | 240/415/480 Volt Primary |
| KVA Rating: | 1 |
| Application: | Any situation where the available voltage must be changed to accommodate the voltage required by the specific electrical circuit or connected equipment. |
| Enclosure: | NEMA 3R with optional weather shield (WS-30) |
| Frequency Rating: | 60 |
| Height: | 5.63 |
| Length: | 22 |
| Mounting: | Wall Mounting Brackets Available |
| Power Factor: | 50 |
| Secondary Voltage: | 120/240 Volt Secondary |
| Special Features: | Primary Amperage 90.3A, Secondary Amperage 90.3A,Stainless Steel Material,220 DEG C Insulation System |
| Standard: | UL Listed E25872 |
| Temperature Rating: | 150 DEG C Rise |
| Type: | Ventilated Distribution Transformer |
