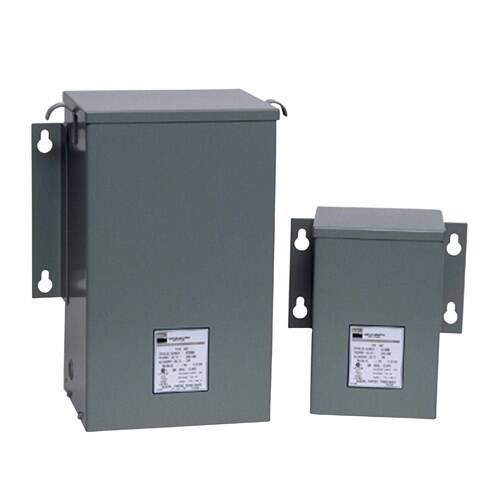

SolaHD 5000 5KVA 240X480-120 NEMA 4/12
$2,722.89
SolaHD #: 5000
SKU: SOLA5000
UPC: 783472571109
SKU: SOLA5000
UPC: 783472571109
| Number Of Phases: | 1 |
| Frequency Rating: | 50/60 HZ |
| Length: | 9 IN |
| Primary Voltage: | 240/480, 230/460, 220/440 Volt Primary |
| Secondary Voltage: | 120/115/110 Volt Secondary |
| Height: | 17 IN |
| KVA Rating: | 5 |
| Temperature Rating: | 80 DEG Temperature Rise under full load |
| Application: | The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. |
| Special Features: | UL Class 180 DEG C insulation system, 80 DEG C temperature rise under full load, Meets or exceeds NEMA regulation standards, Copper windings, Encapsulated, UL Listed/NEMA Type 3R (rain proof) |
| Standard: | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Type: | HSZ Series Industrial Control Transformers |
| Wattage: | 3 KVA |
| Width: | 14 IN |
| Enclosure: | NEMA 4/12 |
