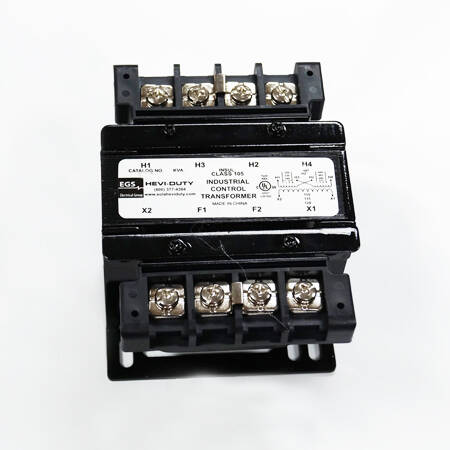

E075 0.075KVA 240X480-120
$63.85
#: E075
SKU: E075
UPC: 783472531226
SKU: E075
UPC: 783472531226
| Mounting: | Heavy Gauge Steel Mounting Plate |
| Number Of Phases: | 1 |
| Application: | Industrial |
| Frequency Rating: | 50/60 HZ |
| Wattage: | 50 VA |
| Standard: | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Special Features: | 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEGC/131 DEGF rise, 105 DEGC insulation system to minimize heat. Epoxy encapsulated to protect cores and coils agains |
| Secondary Voltage: | 120 Volt Secondary |
| Primary Voltage: | 240 x 480 Volt Primary |
| KVA Rating: | 0.075 |
| Length: | 3.99 IN |
| Type: | SBE Encapsulated Series Transformers |
| Width: | 3.01 IN |
| Height: | 2.72 IN |
