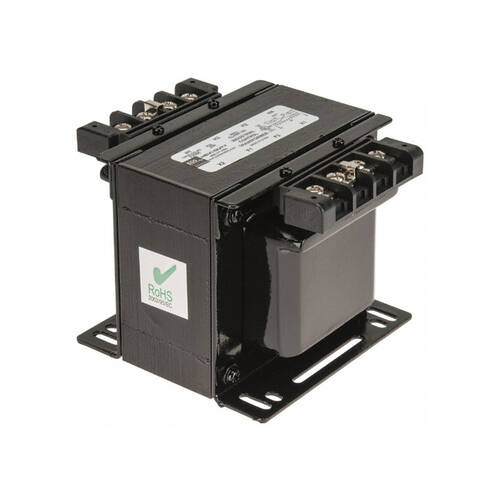

E050 0.050KVA 240X480-120
$56.56
#: E050
SKU: E050
UPC: 783472531219
SKU: E050
UPC: 783472531219
| Frequency Rating: | 60 HZ |
| KVA Rating: | 0.05 |
| Mounting: | Heavy Gauge Steel Mounting Plate |
| Number Of Phases: | 1 |
| Application: | Industrial |
| Height: | 3.89 IN |
| Length: | 5.21 IN |
| Standard: | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Wattage: | 250 VA |
| Special Features: | 50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEGC/131 DEGF rise, 105 DEGC insulation system to minimize heat. Epoxy encapsulated to protect cores and coils agains |
| Width: | 4.5 IN |
| Secondary Voltage: | 120 Volt Secondary |
| Primary Voltage: | 240 x 480 Volt Primary |
| Type: | SBE Encapsulated Series Transformers |
