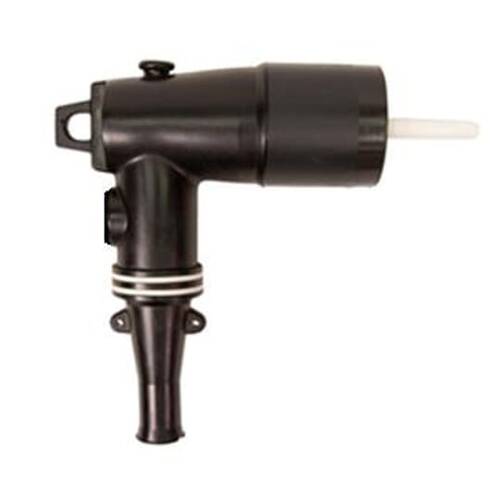

Thomas & Betts 261LR-C5270-SG3 25/28kv 200a Lb Elbow C5270 Sg3
$233.02
Thomas & Betts #: 261LR-C5270-SG3
SKU: ABBI261LR-C5270-SG3
UPC: 075114321969
SKU: ABBI261LR-C5270-SG3
UPC: 075114321969
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter .805-1.060 inches |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Amperage Rating: | 200 A |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Environmental Conditions: | Fully Submersible |
| Conductor Range: | 4/0 STR/COMPR AWG , 250 kcmil |
| Voltage Rating: | 25 to 28 kV |
| Type: | Loadbreak Elbow Connector |
| Application: | Designed for connecting to and operating 25/28kV class, 200 Amp Distribution Apparatus |
| Special Features: | 25/28kV, 200 Amp Loadbreak Elbow. Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connecti |
