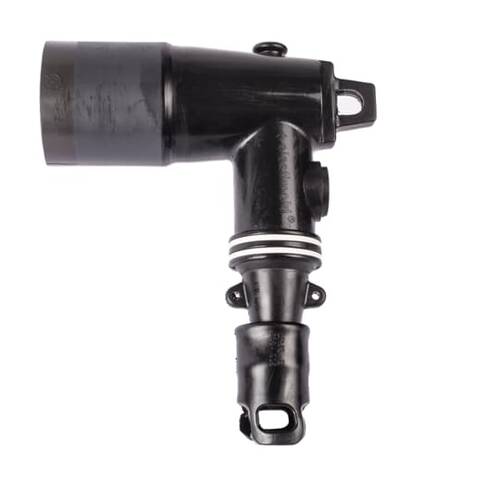

Thomas & Betts 261LRJS-B5240 25/28kv 200a Lb Elbow W- Js
$137.05
Thomas & Betts #: 261LRJS-B5240
SKU: ABBI261LRJS-B5240
UPC: 075114191111
SKU: ABBI261LRJS-B5240
UPC: 075114191111
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Amperage Rating: | 200 A |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Conductor Range: | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
| Type: | Loadbreak Elbow Connector and Jacket Seal |
| Voltage Rating: | 25 to 28 kV |
| Environmental Conditions: | Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water |
| Application: | The 262LRJS is designed for Connecting to and Operating 25/28kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems |
| Special Features: | 25/28kV, 200 Amp Loadbreak Elbow. Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connecti |
