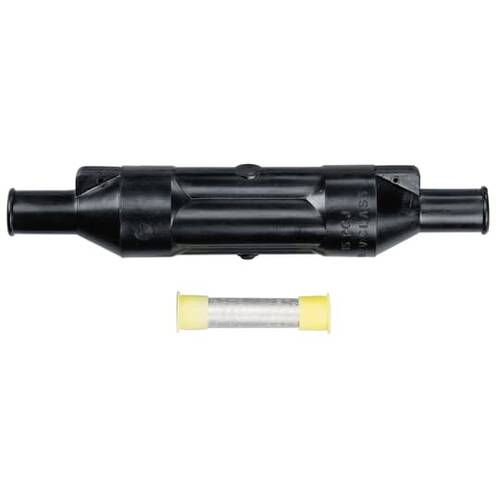

Thomas & Betts 25PCJ1M2380 25 Kv Cable Joint
$340.75
Thomas & Betts #: 25PCJ1M2380
SKU: ABBI25PCJ1M2380
UPC: 783786320790
SKU: ABBI25PCJ1M2380
UPC: 783786320790
| Number Of Conductors: | 2 |
| Color: | Black |
| Application: | For Direct Burial, Vault, Submersible and Other Severe Service Applications |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Size: | 14-3/8 inch long |
| Special Features: | Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to e |
| Standard: | IEEE Standard 404 |
| Type: | Power Cable Joint |
| Voltage Rating: | 25 kV |
| Conductor Range: | 750 kcmil |
