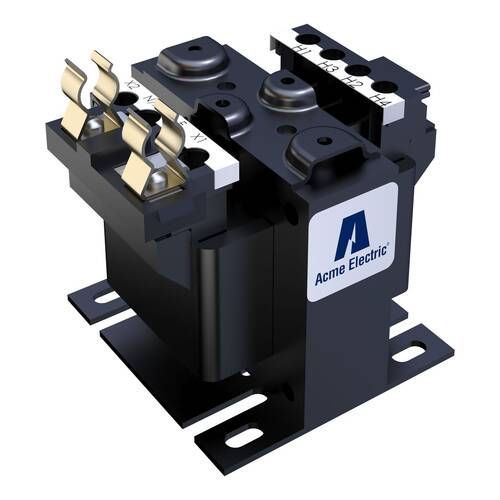

Acme Electric TB250N008F0 ICT .250KVA 240X480-120
$0.00
Acme Electric #: TB250N008F0
SKU: ACMETB250N008F0
UPC: 047503010754
SKU: ACMETB250N008F0
UPC: 047503010754
| Pallet Quantity: | 64 |
| Certified Listed: | UL Listed;cUL Listed |
| FV_Certified Listed: | UL Listed;cUL Listed |
| FEATURES - Bullets: | Encapsulated design protects core & coil assembly from potentially damaging contaminants;Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency;Integrally molded terminal blocks with isolation barriers to prevent arc over;Fuse blocks kits available and easily adaptable;Series-parallel connecting links save wiring and labor costs |
| kVA: | .250 |
| Product Name: | Industrial Control Transformer .250KVA 240X480-120 F0 |
| Description - Short: | ICT .250KVA 240X480-120 F0 |
| Description - Long: | ICT .250KVA 240X480-120 F0 |
| Frequency Rating: | 50/60 HZ |
| Width: | 4.5 IN |
| Primary Voltage: | 240 X 480 V |
| Secondary Voltage: | 120 V |
| Standard: | UL Listed;cUL Listed |
| Application: | Acmes TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transfo |
| Height: | 5.2897 in |
| Length: | 4.547 in |
