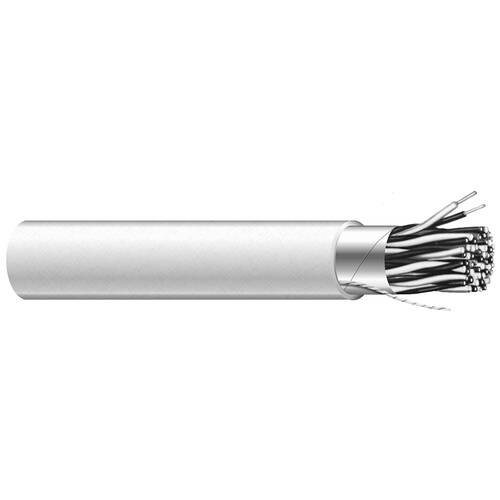

Prysmian Group C0609A.41.10 10P/24 7/32TC OA SH TYPE CMR
$0.00
Prysmian Group #: C0609A.41.10
SKU: PRYSC0609A.41.10
UPC: 079407045921
SKU: PRYSC0609A.41.10
UPC: 079407045921
| Number Of Conductors: | 10 |
| Shield: | Flexfoil |
| Temperature Rating: | (-20C to +80C) |
| Jacket Material: | PVC |
| Application: | Computers; industrial equipment; data transmission; control circuits; suitable for EIA RS-232 applications; suggested voltage rating: 300 volts |
| Color: | Gray |
| Conductor Material: | fully annealed stranded tinned copper |
| Insulation Material: | Premium-grade, color-coded S-R PVC |
| NEMA Color: | Gray |
| Standard: | NEC Article 800 Type CMR; UL Style 2464; CSA CMG; RoHS Compliant Directive 2002/95/EC; Deisgned to meet UL 70,000 BTU Vertical Flame Test; Passes CSA CMG Flame Test |
| Conductor Size: | 24 AWG |
| Strands: | 7/32 |
| Type: | Computer Cable |
| Special Features: | Superior shielding where noise rejection is critical; assists system designers in meeting FCC Docket 20780 demands |
| Outside Diameter: | 0.359 in |
