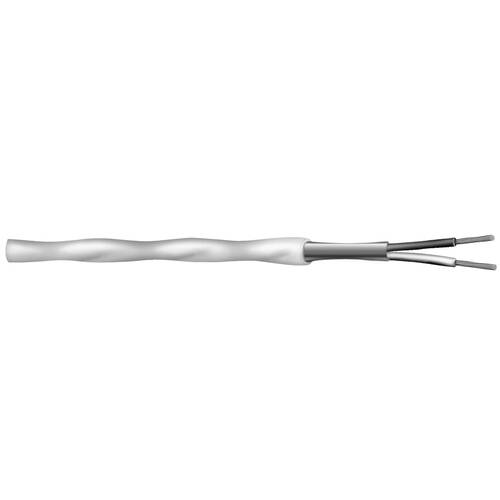

General Cable C2892A.41.10 2C/18 16/30TC SPIRAL SH CM
$0.00
General Cable #: C2892A.41.10
SKU: PRYSC2892A.41.10
UPC: 079407049943
SKU: PRYSC2892A.41.10
UPC: 079407049943
| Jacket Material: | PVC |
| Number Of Conductors: | 2 |
| Color: | Gray |
| NEMA Color: | Gray |
| Conductor Size: | 18 AWG |
| Temperature Rating: | -20C to +80C |
| Insulation Material: | Premium-grade, color-coded PVC |
| Application: | Electronic circuits where RF shielding is required; radio transmitters; sound systems; recording studios; suggested voltage rating: 300 volts |
| Braid: | spiral tinned copper |
| Shield: | spiral tinned copper braid |
| Special Features: | Spiral shield allows ease of "pigtail soldering"; maximum flexibility |
| Standard: | NEC Article 800 Type CM; UL Style 2095; RoHS Compliant Directive 2002/95/EC; CSA CMG; Passes CSA CMG Flame Test; designed to meet UL 70,000 BTU Vertical Tray Flame Test; NEC Article 725 CL5 |
| Strands: | 16/30 |
| Conductor Material: | Fully annealed, stranded tinned copper per ASTM B-37 |
| Outside Diameter: | 0.252 in |
