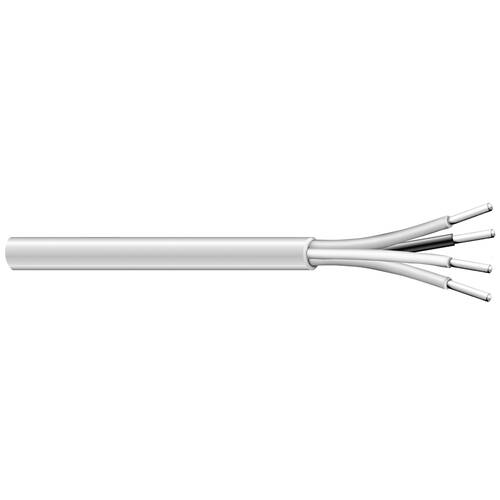

Prysmian Group E1054S.38.10 4C/14 19/.0147BC UNSH CL3R
$0.00
Prysmian Group #: E1054S.38.10
SKU: PRYSE1054S.38.10
UPC: 079407039487
SKU: PRYSE1054S.38.10
UPC: 079407039487
| Number Of Conductors: | 4 |
| Type: | Sound, Alarm and Security Cable |
| Application: | Power-limited control circuits; wiring of the following systems: intercome, security, audio, background music; suggested voltage rating: 300 volts |
| Conductor Material: | stranded or solid bare copper |
| Insulation Material: | Premium-grade, color-coded S-R PVC |
| Temperature Rating: | (-20C to +75C) |
| Color: | Gray |
| Conductor Size: | 14 AWG |
| Jacket Material: | Premium-grade, gray PVC |
| NEMA Color: | Gray |
| Standard: | NEC Article 725 Type CL3R; NEC Article 800 Type CMR; RoHS Compliant Directive 2002/95/EC; California State Fire Marshall Approved |
| Strands: | 19/.0147 |
| Outside Diameter: | 0.264 in |
