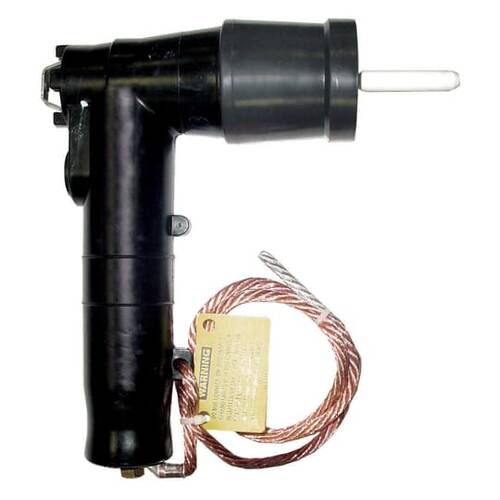

Thomas & Betts 273ESA-18 Surge Elbow Arrester 25kv
$383.42
Thomas & Betts #: 273ESA-18
SKU: ABBI273ESA-18
UPC: 783786627844
SKU: ABBI273ESA-18
UPC: 783786627844
| Amperage Rating: | 200 A |
| Voltage Rating: | 25 kV |
| Connection: | Push-In |
| Operating Temperature: | -40 to +65 C |
| Environmental Conditions: | All Weather Conditions, UV Resistant |
| Standard: | ANSI/IEEE Standard 386, IEEE C62.11-2012 |
| Application: | Underground Medium Voltage Applications |
| Type: | Elbow Surge Arrestor |
| Special Features: | Equipped with a Fully Rated 200 Amp Switching and Fault-Close Loadbreak Bushing |
| Insulation: | EPDM Rubber |
| Size: | Length to Center of Bushing 9.36 inch, Width 7.42 inch |
| Material: | Housing - EPDM Rubber |
