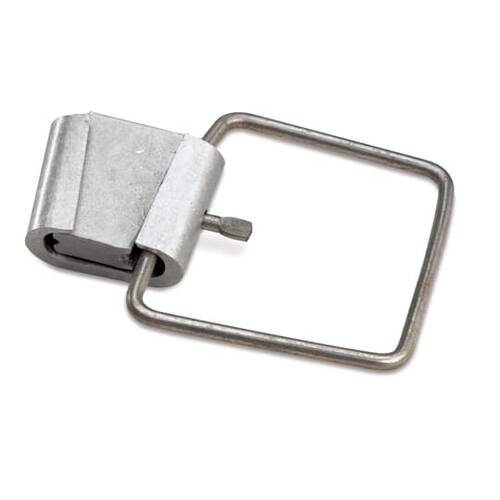

Thomas & Betts PT-4005-S10 Pwrtap Stirrup Wire 1/0 2/0 Bail1/0
$96.29
Thomas & Betts #: PT-4005-S10
SKU: ABBIPT-4005-S10
UPC: 783786743698
SKU: ABBIPT-4005-S10
UPC: 783786743698
| Temperature Rating: | 90 C |
| Environmental Conditions: | Outdoor Use |
| Special Features: | Low Stresses produced at interfaces precludes significant conductor creep and minimize loss of clamping force on connectors. Contact forces are nearly constant during temperature changes or conductor compaction. Driving action helps remove oxidation fr |
| Standard: | RUS Accepted |
| Type: | Stirrup Connector |
| Application: | Built for Strength, Conductivity and Longevity |
| Tap Size: | 1/0 AWG |
| Finish: | Bare Wedge, Tin-Plated Stirrup |
| Material: | Aluminum Wedge, Copper Bail |
| Conductor Size: | 2/0 STR AWG , 2/0 to 3/0 SOL AWG |
| Size: | 2 inch long Wedge, 4.525 inch wide Stirrup |
