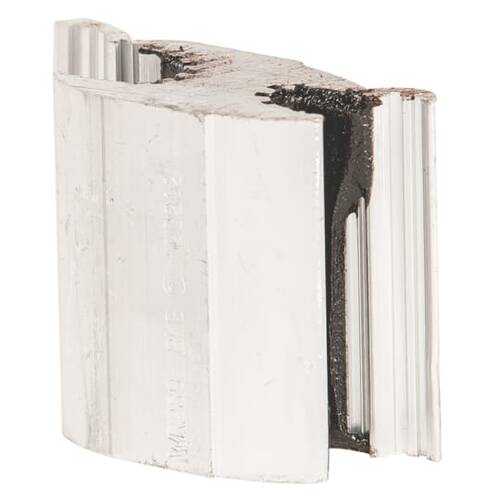

Thomas & Betts DB 3 Al Htype Comp Conn 1-7/8in 3conn
$8.65
Thomas & Betts #: DB 3
SKU: ABBIDB 3
UPC: 783786717156
SKU: ABBIDB 3
UPC: 783786717156
| Material: | Aluminum |
| Number Of Conductors: | 2 |
| Connection: | Compression |
| Insulation: | None |
| Application: | For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors |
| Environmental Conditions: | All Seasons / Conditions |
| Mounting: | None |
| Special Features: | Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conduct |
| Standard: | RUS Accepted. Complies with ANSI C119.4 Specifications |
| Temperature Rating: | up to 90 C |
| Type: | H-Type Compression Tap Connector |
| Finish: | Bare |
| Size: | Length 1-7/8 inches |
| Wire Size: | Groove A: 2/0 to #1 ACSR or 3/0 to 1/0 STR , Groove B: #2 to #6 ACSR/SOL or #1 to #6 STR AWG |
