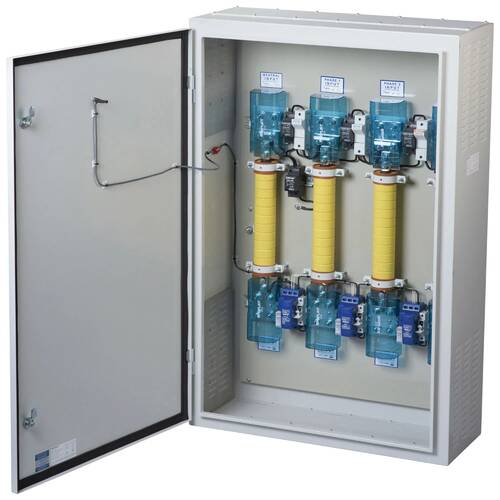

nVent SRF3800N SRF,N-SERIES, 3PH,800A,240/415V
$22,300.18
nVent #: SRF3800N
SKU: NVENSRF3800N
UPC: 782856915447
SKU: NVENSRF3800N
UPC: 782856915447
| Frequency: | 50-60 |
| Enclosure Material: | Metal |
| Protection Modes: | All modes protected |
| Complies With: | IEC 61643-11 Class I, Class II |
| System Compatibility: | TN-C |
| Technology: | Spark Gap |
| Status Indication: | Front panel LED |
| Filtering: | -40 dB @ 100 kHz |
| Short Circuit Current Rating (SCCR): | 43 |
| Nominal System Voltage (Un): | 220/380 - 240/415 VAC |
| Enclosure Rating: | IP 32 |
| Heat Dissipation: | 260 |
| Unit Weight: | 214.3-214.3 |
| Output Connection: | (2) 10 mm Studs |
| Input Connection: | (2) 10 mm Studs |
| Application: | Power Connections; Surge Protection |
| Mounting: | Wall mount |
| Type: | Surge Reduction Filters |
| Special Features: | High-performance protection incorporating Spark Gap and Transient Discriminating (TD) technologies. High surge rating ideal for exposed critical service entrance applications. Reduces let-through voltages and rate-of-voltage rise (dv/dt) and helps provide |
| Depth: | 300-300 |
| Width: | 800-800 |
| Height: | 1,200-1,200 |
