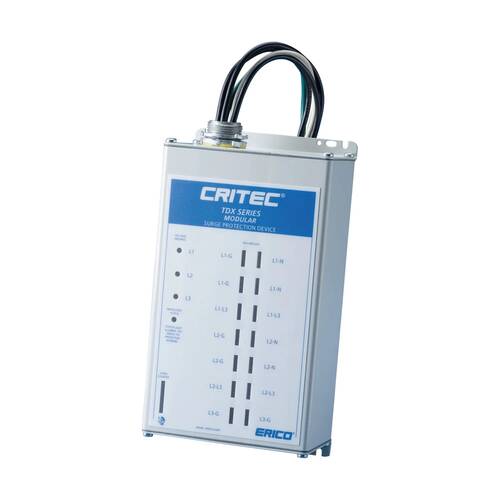

nVent TDX200S480D PROTTDX200S,3P,DELTA,480V,3W+G,200KA/P
$2,835.76
nVent #: TDX200S480D
SKU: NVENTDX200S480D
UPC: 782856593980
SKU: NVENTDX200S480D
UPC: 782856593980
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Protection Modes: | L-N |
| Technology: | TD technology with thermal disconnect |
| Status Indication: | LED |
| Enclosure Material: | Metal |
| Remote Contacts: | Yes |
| Nominal System Voltage (Un): | 480 V |
| Replacement Module: | TDS150M560 |
| Service Configuration: | Delta |
| Distribution System: | 3Ph 3W+G |
| Stand-off Voltage: | 790 VAC |
| Max Continuous Operating Voltage (Uc): | 550 VAC |
| Voltage Protection Rating (VPR), L-L: | 1800 V @ 3 kA |
| Certification Details: | UL 1449 Edition 5 Type 2, 20 kA Mode |
| Surge Counter: | Yes |
| Application: | Power Connections; Surge Protection |
| Mounting: | 3/4? straight nipple |
| Type: | Transient Discriminating Panel Protectors |
| Standard: | C-Tick, CE |
| Depth: | 78-78 |
| Height: | 9.45-9.45 |
| Width: | 130-130 |
