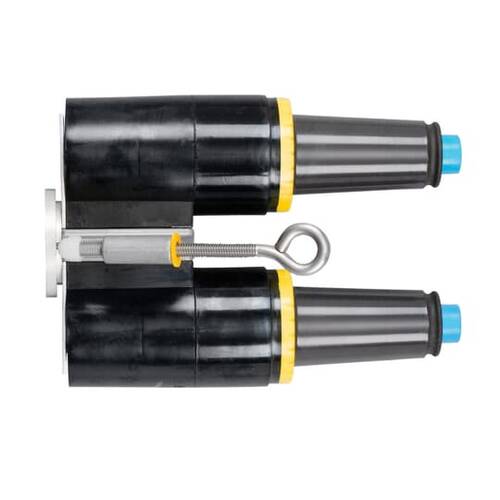

Thomas & Betts 274FT Feed-thru 200a Lb 25kv
$509.33
Thomas & Betts #: 274FT
SKU: ABBI274FT
UPC: 783786359714
SKU: ABBI274FT
UPC: 783786359714
| Size: | 4 inch (101.6 mm) Center to Center, 6.63 inch (168.4 mm) width, 8.58 inch (218.0 mm) Height to Bushing Datum |
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Color: | Black |
| Type: | Feed-Thru |
| Standard: | ANSI/IEEE Standard 386 |
| Voltage Rating: | 25 kV |
| Material: | Housing - EPDM Rubber |
| Amperage Rating: | 200 A |
| Insulation: | Yes, EPDM Rubber |
| Application: | Fully shielded, fully submersible insulated connector designed for energized operation |
| Special Features: | 28kV, 200 Amp Loadbreak Rated. Uses integrated parking stand to mount. Provide extra tap for elbow arrester connection. Peroxide-cured insulation and jacket. Optional accessories allow by-pass, isolation, testing, and grounding |
