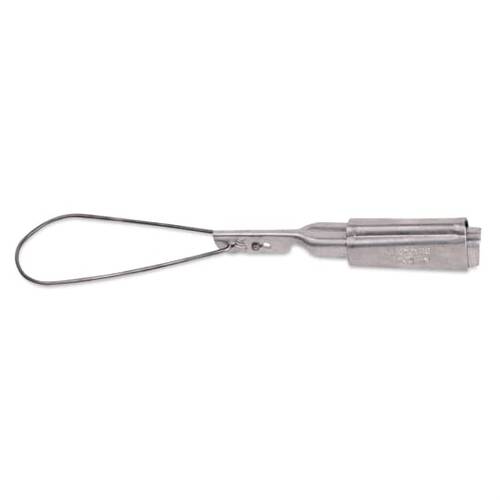

Thomas & Betts W20-1B Al Ir Serventr Wdge Clmp/sldr 1/0-4
$10.39
Thomas & Betts #: W20-1B
SKU: ABBIW20-1B
UPC: 783786332083
SKU: ABBIW20-1B
UPC: 783786332083
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Size: | Length 12-1/2 in X Depth 2-3/8 in |
| Special Features: | Drop wire may be cut to exact length for adjustments in drop wire sag. Can be attached to bare neutral at any point in the span. Flexible and rigid bails grip ACSR, AAC and AAAC Conductors |
| Type: | Aluminum Service Wedge Clamp |
| Number of Conductors: | 1 |
| Voltage Rating: | 35 kV |
| Environmental Conditions: | All Seasons / Conditions |
| Finish: | Bare |
| Insulation: | None |
| Mounting: | Yes |
| Connection: | Tension |
| Application: | Dead-End Self-supporting Drop Wire. For Extremely Corrosive Areas |
| Material: | Iridited Aluminum |
| Conductor Range: | 1/0 to #4 ASCR AWG , 1/0 to #4 AAAC AWG , 2/0 STR AWG , #2 SOL AWG |
