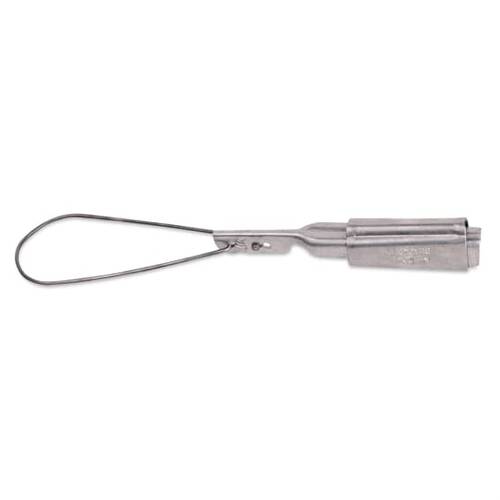

Thomas & Betts W20-1AN Al An Serventr Wdge Clmp/sldr 1/0-4
$23.59
Thomas & Betts #: W20-1AN
SKU: ABBIW20-1AN
UPC: 783786074693
SKU: ABBIW20-1AN
UPC: 783786074693
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Size: | Length 12-1/2 in |
| Special Features: | Drop wire may be cut to exact length for adjustments in drop wire sag. Can be attached to bare neutral at any point in the span. Flexible and rigid bails grip ACSR, AAC and AAAC Conductors |
| Type: | Aluminum Service Wedge Clamp |
| Application: | Dead-End Self-supporting Drop Wire |
| Conductor Range: | 1/0 to #4 ACSR AWG , 2/0 STR AL AWG , #2 SOL AL AWG , 1/0 to #4 AAAC AWG |
| Number of Conductors: | 1 |
| Voltage Rating: | 35 kV |
| Environmental Conditions: | All Seasons / Conditions |
| Finish: | Bare |
| Insulation: | None |
| Mounting: | Yes |
| Connection: | Tension |
| Material: | Anodized Aluminum |
