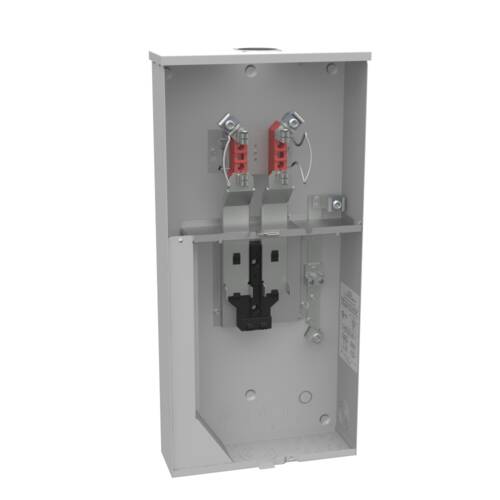

Milbank U5844-PXL 200A 4T RL MTR MAIN OU 51270
$0.00
Milbank #: U5844-PXL
SKU: MILBU5844-PXL
UPC: 784572512702
SKU: MILBU5844-PXL
UPC: 784572512702
| Cable Entry: | Overhead or Underground |
| Enclosure: | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating: | 60 Hertz |
| Jaw Quantity: | 4 Terminal |
| Mounting: | Surface Mount |
| Number of Meter Positions: | 1 Position |
| Amperage Rating: | 200 Continuous Ampere |
| Application: | Meter Socket With Main |
| Bypass Type: | No Bypass |
| Insulation: | Glass Polyester |
| Line Side Wire Range: | 6 AWG - 350 kcmil |
| Equipment Ground: | 2 Barrel Ground Lug |
| Cutout Size: | Breaker Provision |
| Hub Opening: | Small Closing Plate Included Inside Meter Socket |
