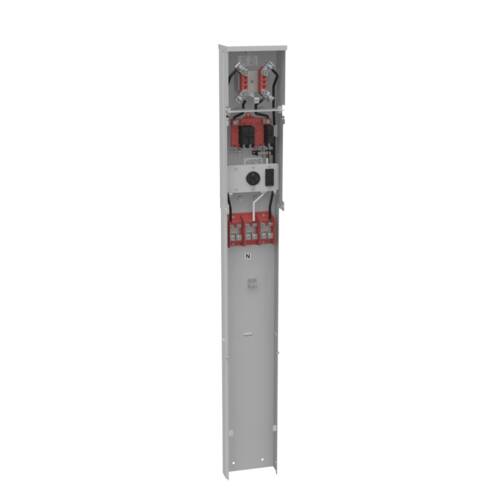

Milbank U5300-O-55-L 125A RT MTR DB PED 32685
$0.00
Milbank #: U5300-O-55-L
SKU: MILBU5300-O-55-L
UPC: 784572326859
SKU: MILBU5300-O-55-L
UPC: 784572326859
| Number Branch Circuits: | 3 |
| Number Of Receptacles: | 2 |
| Receptacle Configuration: | One NEMA 14-50 and One NEMA 5-20 Ground Fault |
| Number Of Cutouts: | 2 |
| Enclosure: | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating: | 60 Hertz |
| Jaw Quantity: | 4 Terminal |
| Bypass Type: | No Bypass |
| Insulation: | Glass Polyester |
| Line Side Wire Range: | 6 AWG - 350 kcmil |
| Cable Entry: | Underground |
| Hub Opening: | Plain Top |
| Amperage Rating: | 125 Continuous Ampere |
| Mounting: | Pedestal |
| Application: | RV Power |
| Number of Meter Positions: | Single Power Head |
| Equipment Ground: | 2 Barrel Ground Lug and Ground Bar |
| Cutout Size: | One Single Pole 20 Ampere Breaker and One Double Pole 50 Ampere Breaker |
