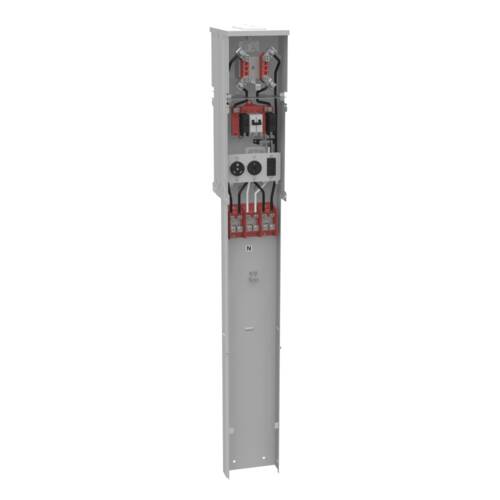

Milbank U5320-XL-75 125A MTR DBL DB PED 32221
$0.00
Milbank #: U5320-XL-75
SKU: MILBU5320-XL-75
UPC: 784572322219
SKU: MILBU5320-XL-75
UPC: 784572322219
| Number Branch Circuits: | 4 |
| Number Of Receptacles: | 6 |
| Receptacle Configuration: | Two NEMA 14-50 and Two NEMA TT30 and Two NEMA 5-20 Ground Fault |
| Number Of Cutouts: | 6 |
| Enclosure: | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating: | 60 Hertz |
| Jaw Quantity: | 4 Terminal |
| Bypass Type: | No Bypass |
| Insulation: | Glass Polyester |
| Line Side Wire Range: | 6 AWG - 350 kcmil |
| Cable Entry: | Underground |
| Hub Opening: | Plain Top |
| Amperage Rating: | 125 Continuous Ampere |
| Mounting: | Pedestal |
| Application: | RV Power |
| Equipment Ground: | 2 Barrel Ground Lug and Ground Bar |
| Number of Meter Positions: | Double Power Head |
| Cutout Size: | Two Single Pole 20 Ampere Breakers and Two Single Pole 30 Ampere Breakers and Two Double Pole 50 Ampere Breakers |
