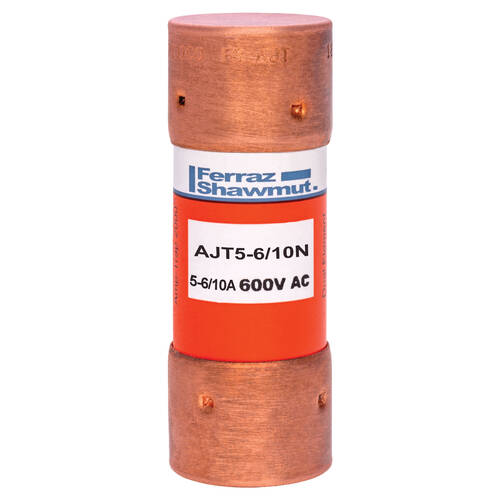

Mersen AJT5-6/10N Fuse AJT - Class J - Time-delay 600VAC 500VDC 5.6A Ferrule
$26.52
Mersen #: AJT5-6/10N
SKU: MERSAJT5-6/10N
UPC: 782001498115
SKU: MERSAJT5-6/10N
UPC: 782001498115
| AC Voltage Rating: | 600 V |
| Body Material: | GMG |
| Connection Material: | Tin-Plated Copper |
| Special Features: | Non-indicating or solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Most current-l |
| Standard: | AJT (1-600): UL listed to standard 248-8 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.8 IEC 60269-2-1 AJT (70-600) EI: UL listed DC tested to UL standard 248 |
| Type: | Class J |
| Application: | Motor circuits Mains Feeders Branch circuits Lighting, heating & general loads Transformers Control panels Circuit breaker back-up Bus duct Load centers |
| Class: | Class J |
| Interrupt Rating: | 200 kA |
| Connection: | Ferrule |
| Mounting: | Clip |
| Amperage Rating: | 5.6 A |
| Size: | 2.25 x 0.81 in |
