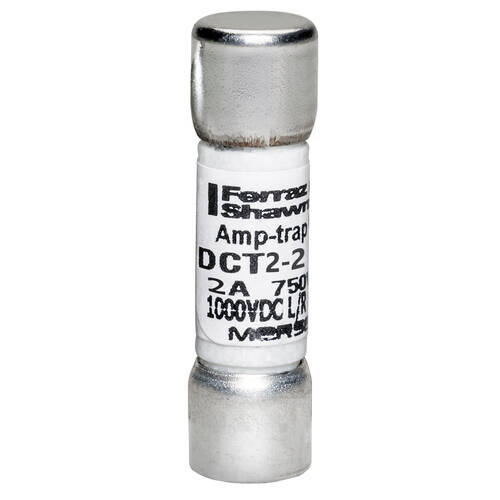

Mersen DCT2-2 Fuse DCT - Midget - Fast-Acting 750VAC 1000VDC 2A Ferrule
$43.63
Mersen #: DCT2-2
SKU: MERSDCT2-2
UPC: 782001410063
SKU: MERSDCT2-2
UPC: 782001410063
| Body Material: | GMG |
| Connection Material: | Tin-Plated Copper |
| DC Voltage Rating: | 1000 V |
| AC Voltage Rating: | 750 V |
| Class: | Midget |
| Connection: | Ferrule |
| Mounting: | Clip |
| Type: | Midget Fuses |
| Amperage Rating: | 2 A |
| Size: | 1.5 x 0.41 in |
| Interrupt Rating: | 100 kA |
| Standard: | UL Recognized component File E60314 |
| Application: | DC traction equipment Multi-meters Photovoltaic systems Semiconductor protection |
| Response Time: | Fast-Acting |
| Special Features: | Low minimum breaking capacity (MBC) Compact size: 10 x 38 mm (13/32" x 1-1/2") size internationally accepted Ferrule mount 1 to 30A for design versatility Can be used with UltraSafeTM fuse holders USM series 1 1/2" x 13/32" (10 mm x 38 mm) dimensions |
| Voltage Rating: | 750 VAC |
