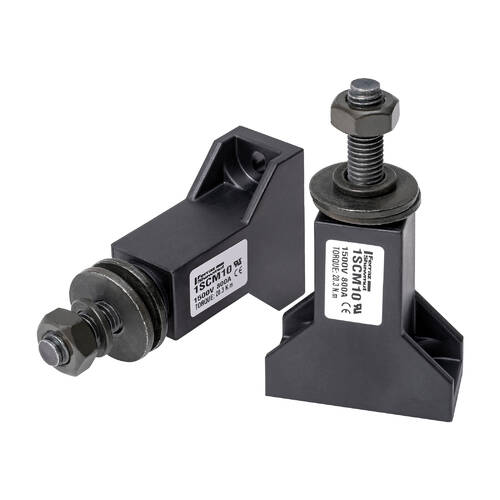

Mersen 1SCM10 Fuse Block 1500VAC 1500VDC 800A 1-Pole Stud M10
$28.16
Mersen #: 1SCM10
SKU: MERS1SCM10
UPC: 782001376536
SKU: MERS1SCM10
UPC: 782001376536
| Maximum Operating Temperature: | 80 C |
| AC Voltage Rating: | 1500 V |
| DC Voltage Rating: | 1500 V |
| Phase: | 1 |
| Mounting: | Direct Screw Mount |
| Number Of Poles: | 1 |
| Application: | Modular semiconductor fuse blocks Volts: 1000VAC/DC (SCCR: 200kA) 1500VAC/DC (SCCR: 100kA) Amps: 800A Maximum |
| Connection: | Stud |
| Material: | Thermoplastic |
| Special Features: | Modular two-piece design Compact footprint Stud versions Heat dissipating integral box connector versions Accommodates a large range of semiconductor fuses Rugged phenolic insulators |
| Standard: | UL Recognized Component File E52283 |
| Type: | Semiconductor & Special Purpose Fuse Bases & Accessories |
| Voltage Rating: | 1000 VAC |
| Amperage Rating: | 800 A |
| Size: | 2.12 x 3.82 x 1 in |
