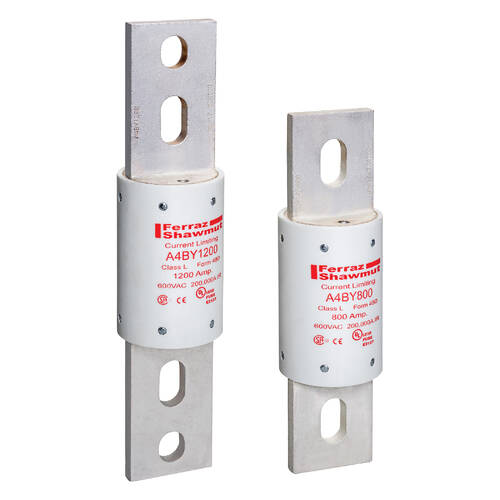

Mersen A4BY250-TI Fuse A4BY - Class L - Time-Delay 600VAC 300VDC 250A Blade TI Indicator
$1,118.68
Mersen #: A4BY250-TI
SKU: MERSA4BY250-TI
UPC: 782001931193
SKU: MERSA4BY250-TI
UPC: 782001931193
| AC Voltage Rating: | 600 V |
| Body Material: | GMG |
| DC Voltage Rating: | 300 V |
| Connection Material: | Silver-Plated Copper |
| Connection: | Blade |
| Amperage Rating: | 250 A |
| Voltage Rating: | 600 VAC |
| Interrupt Rating: | 200 kA |
| Class: | Class L |
| Mounting: | Bolted |
| Size: | 8.63 x 2 in |
| Type: | Class L |
| Application: | Mains Feeders Circuit Breakers Load centers Panelboards Switchboards Metering Centers |
| Special Features: | Unique dimensions prevent replacement by other fuse classes Blade-stamped catalog numbers for permanent identification Glass melamine body and plated terminals provide superior reliability in harsh environments |
| Standard: | Mersen Self-Certification, UL Listed to Standard 248-10, File E2137 CSA Certified to Standard C22.2, No. 248.10 IEC 269-2-1 DC Tested to UL 248 limits (Mersen Self-Certified) |
| Type Of Indicators: | TI Indicator |
