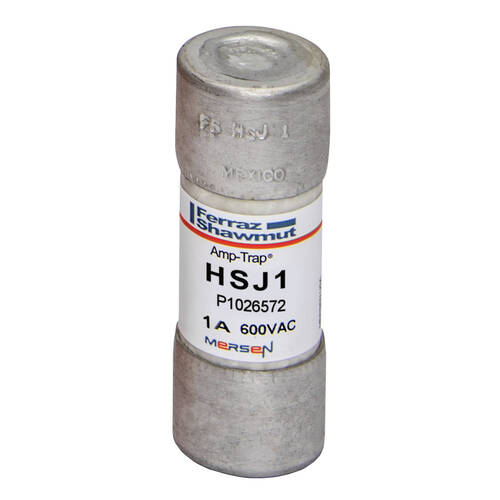

Mersen HSJ1 Fuse HSJ - Class J - High-Speed 600VAC 500VDC 1A Ferrule
$59.38
Mersen #: HSJ1
SKU: MERSHSJ1
UPC: 782001372460
SKU: MERSHSJ1
UPC: 782001372460
| AC Voltage Rating: | 600 V |
| Body Material: | GMG |
| DC Voltage Rating: | 500 V |
| Connection Material: | Tin-Plated Copper |
| Connection: | Ferrule |
| Mounting: | Clip |
| Voltage Rating: | 600 VAC |
| Class: | Class J |
| Interrupt Rating: | 200 kA |
| Type: | Class J |
| Amperage Rating: | 1 A |
| Size: | 2.25 x 0.81 in |
| Application: | Branch circuits Control panels Electronic motor controllers Phase controllers Drives Soft-starters Solid state relays |
| Special Features: | Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts Low I2t (low thermal energy) Excellent cycling ability for frequent starts/stops without nuisance opening |
| Standard: | UL listed to standard 248-8 File E2137 CSA certified to standard C22.2 no. 248.8 DC listed to UL 248 |
