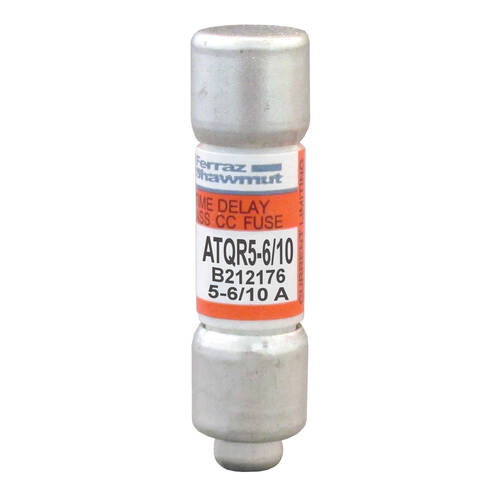

Mersen ATQR5-6/10 Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 5.6A Ferrule
$22.74
Mersen #: ATQR5-6/10
SKU: MERSATQR5-6/10
UPC: 782001906597
SKU: MERSATQR5-6/10
UPC: 782001906597
| AC Voltage Rating: | 600 V |
| Body Material: | GMG |
| Connection Material: | Tin-Plated Copper |
| Voltage Rating: | 600 VAC |
| Interrupt Rating: | 200 kA |
| Connection: | Ferrule |
| Mounting: | Clip |
| Amperage Rating: | 5.6 A |
| Class: | Class CC |
| Size: | 1.5 x 0.41 in |
| Type: | Class CC |
| Application: | Control transformers Solenoids Inductive loads Lighting, heating & general-purpose loads |
| Special Features: | Time-delay for control transformer inrush loads without nuisance opening Highly current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse blocks) High visibility orange label ensures |
| Standard: | UL listed to standard 248-4 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.4 |
